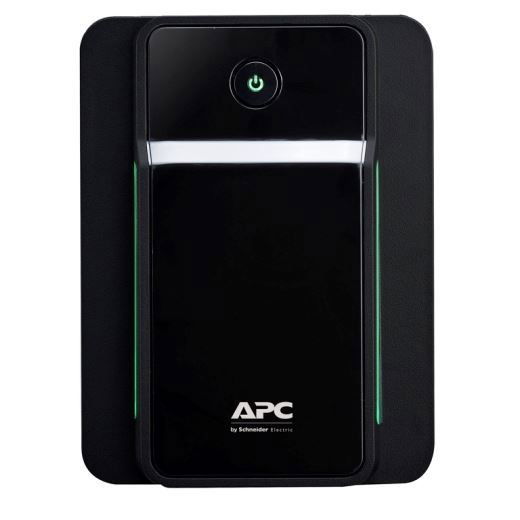

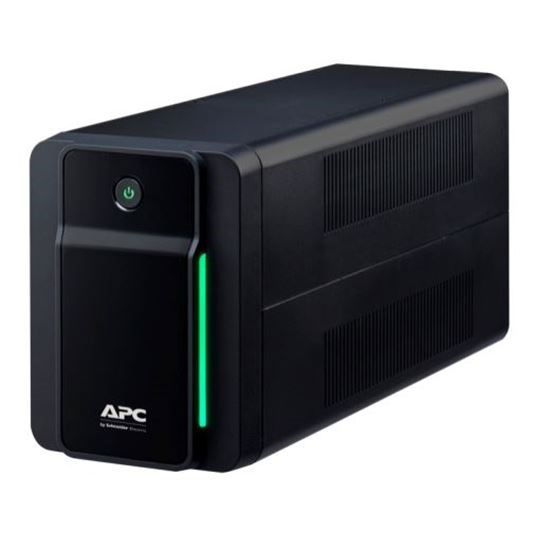

APC Back-UPS 950VA 230V Line Interactive Tower with AVR

Battery Backup & Surge Protector for Electronics and Computers

Battery and surge protected outlets:
Back up and protect your hardware and data during power outages, surges and spikes

Surge only outlets:
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery-protected and surge-only outlets:
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Safety-agency approved:
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Audible alarms:
Provides notification of changing utility power and UPS power conditions

LED status display:
Quickly understand unit and power status with visual indicators.

Automatic self-test:
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification:
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Intelligent battery management:
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Output:
• Max Configurable Power (Watts): 480 Watts / 950VA
• Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
• Topology: Line interactive
• Waveform type: Stepped approximation to a sinewave
• Transfer Time: 6 ms typical : 10 ms maximum

Input:
• Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing
• Input voltage range for main operations: 140 - 300V
• Number of Power Cords: 1
• Input Power Factor at Full Load: 0.54

Batteries & Runtime:
• Battery type: Lead-acid battery
• Typical recharge time: 8hour(s)
• Nominal Battery Voltage: 12 V
• Expected Battery Life: 3 - 5 years
• Battery Volt-Amp-Hour Capacity: 108

Communications & Management:
• Control panel: LED Status display with on line : on battery
• Audible Alarm: Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering:
• Surge energy rating: 273Joules
• Data Line Protection: RJ45 10/100/1000 Base-T Ethernet protection

Environmental:
• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3000meters
• Storage Temperature: -15 - 40 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 3000meters
• Audible noise at 1 meter from surface of unit: 40.0dBA
• Protection Class: IP20

Physical:
• Maximum Height: 160MM, 16.0CM
• Maximum Width: 120MM, 12.0CM
• Maximum Depth: 355MM, 35.5CM
• Net Weight: 6.1KG
• Color: Black
