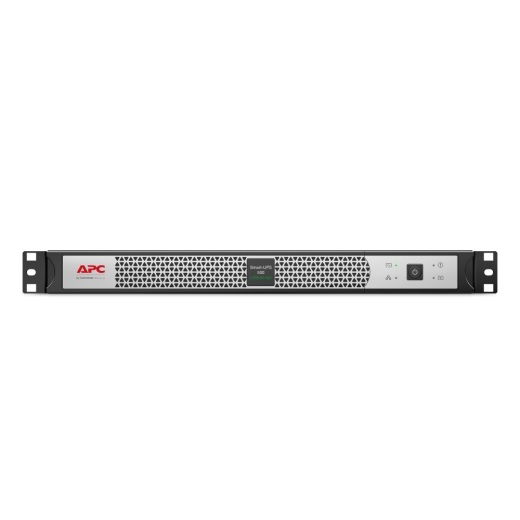

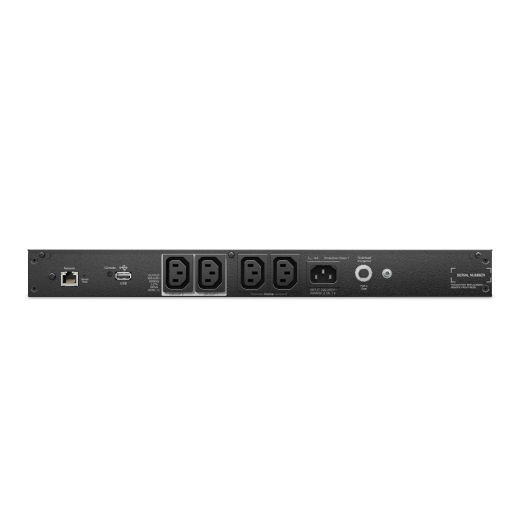

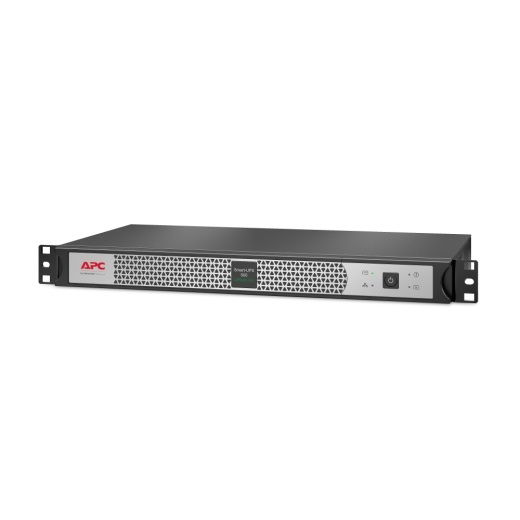

APC Smart-UPS C 500VA Lithium Ion 1U Rack Mount UPS with Network Card

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Cold-start capable:
Provides temporary battery power when the utility power is out.

High online efficiency:
Reduces utility costs, generates less heat.

Lithium-ion battery:
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.

Network manageable:
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Predictive replace battery date:
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Preinstalled network management card:
Provides for remote management and control of the UPS over a network out of the box.

Short-depth rack compatibility:
Compact design fits comfortably in short-depth rack applications.

Single switched outlet group:
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

Temperature-compensated battery charging:
Prolongs battery life by regulating the charge voltage according to battery temperature.

Output:
• Max Configurable Power (Watts): 400 Watts / 500VA
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Waveform type: Sine wave
• Transfer Time: 6 ms typical : 10 ms maximum

Input:
• Input frequency: 47 - 63 Hz
• Input voltage range for main operations: 208 - 253V

Batteries & Runtime:
• Battery type: Li-Ion (Lithium-Ion)
• Typical recharge time: 3hour(s)
• Expected Battery Life: 8 - 10 years
• Battery Charge Power (Watts): 10 Watts

Communications & Management:
• Control panel: LED Status display with on line : on battery
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering:
• Surge energy rating: 510Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Environmental:
• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 10 - 90 (Non-condensing) %
• Operating Elevation: 0 - 1999.79meters
• Storage Temperature: -10 - 40 °C
• Storage Relative Humidity: 10 - 90 (Non-condensing) %
• Storage Elevation: 0 - 14999.8meters
• Audible noise at 1 meter from surface of unit: 45.0dBA

Physical:
• Maximum Height: 44MM, 4.4CM
• Maximum Width: 432MM, 43.2CM
• Maximum Depth: 232MM, 23.2CM
• Net Weight: 4.1KG
• Color: Black
