Product Description:

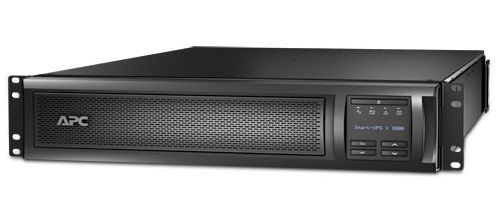

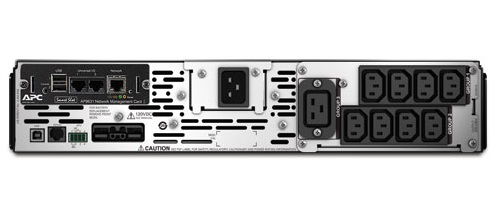

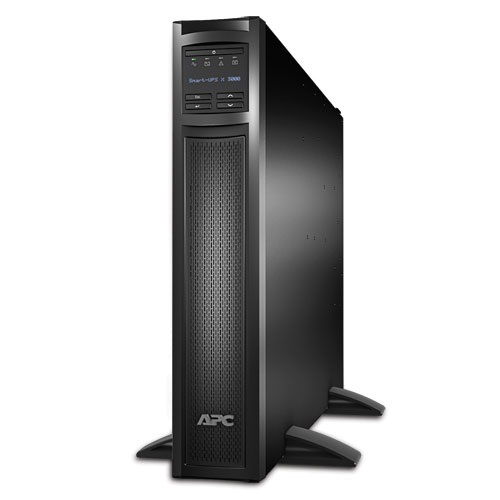

APC Smart-UPS X 3000VA/2700W 8 x Outlets Line Interactive Rack/Tower UPS
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features:
Audible alarms:
Provides notification of changing utility power and UPS conditions.
Boost and Trim Automatic Voltage Regulation (AVR):
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Battery failure notification:
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers:
Enables a quick recovery from overload events.
User-replaceable batteries:
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries:
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification:
Provides early-warning fault analysis ensuring proactive component replacement.
Provides notification of changing utility power and UPS conditions.
Boost and Trim Automatic Voltage Regulation (AVR):
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Battery failure notification:
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Resettable circuit breakers:
Enables a quick recovery from overload events.
User-replaceable batteries:
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries:
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Predictive failure notification:
Provides early-warning fault analysis ensuring proactive component replacement.
Specifications:
Output:
• Max Configurable Power (Watts): 2.7kWatts / 3.0kVA
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 208 V, 220 V, 240 V
• Load Crest Factor: 3 : 1
• Topology: Line interactive
• Waveform type: Sine wave
• Transfer Time: 2-4 ms
• Transfer Time: 6 ms typical : 10 ms maximum
Input:
• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations: 140 - 280V
• Number of Power Cords: 1
• Other Input Voltages: 220 V, 240 V
• Transfer Time: 2-4 ms
Batteries & Runtime:
• Battery type: Lead-acid battery
• Typical recharge time: 3hour(s)
• Expected Battery Life: 3 - 5 years
• RBC Quantity: 1
• Battery Charge Power (Watts): 245 Watts
• Extendable Run Time: 1
Communications & Management:
• Interface Port(s): RJ-45 Serial, SmartSlot
• Control panel: LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO): Yes
• Available SmartSlot Interface Quantity: 1
Surge Protection and Filtering:
• Surge energy rating: 645Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Environmental:
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0 - 10000ft (0 - 3048meters)
• Storage Temperature: -15 - 45 °C
• Storage Relative Humidity: 0 - 95 %
• Storage Elevation: 0 - 50000ft (0 - 15240meters)
• Audible noise at 1 meter from surface of unit: 55.0dBA
• Online thermal dissipation: 184.0BTU/hr
Physical:
• Maximum Height: 85MM, 8.5CM
• Maximum Width: 432MM, 43.2CM
• Maximum Depth: 667MM, 66.7CM
• Net Weight: 37.32KG
• Color: Black
• Units per Pallet: 8.0
• Max Configurable Power (Watts): 2.7kWatts / 3.0kVA
• Output Voltage Distortion: Less than 5 %
• Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
• Other Output Voltages: 208 V, 220 V, 240 V
• Load Crest Factor: 3 : 1
• Topology: Line interactive
• Waveform type: Sine wave
• Transfer Time: 2-4 ms
• Transfer Time: 6 ms typical : 10 ms maximum
Input:
• Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
• Input voltage range for main operations: 140 - 280V
• Number of Power Cords: 1
• Other Input Voltages: 220 V, 240 V
• Transfer Time: 2-4 ms
Batteries & Runtime:
• Battery type: Lead-acid battery
• Typical recharge time: 3hour(s)
• Expected Battery Life: 3 - 5 years
• RBC Quantity: 1
• Battery Charge Power (Watts): 245 Watts
• Extendable Run Time: 1
Communications & Management:
• Interface Port(s): RJ-45 Serial, SmartSlot
• Control panel: LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console
• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO): Yes
• Available SmartSlot Interface Quantity: 1
Surge Protection and Filtering:
• Surge energy rating: 645Joules
• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Environmental:
• Operating Temperature: 32 - 104 °F (0 - 40 °C)
• Operating Relative Humidity: 0 - 95 %
• Operating Elevation: 0 - 10000ft (0 - 3048meters)
• Storage Temperature: -15 - 45 °C
• Storage Relative Humidity: 0 - 95 %
• Storage Elevation: 0 - 50000ft (0 - 15240meters)
• Audible noise at 1 meter from surface of unit: 55.0dBA
• Online thermal dissipation: 184.0BTU/hr
Physical:
• Maximum Height: 85MM, 8.5CM
• Maximum Width: 432MM, 43.2CM
• Maximum Depth: 667MM, 66.7CM
• Net Weight: 37.32KG
• Color: Black
• Units per Pallet: 8.0
Package Contents:
• APC Smart-UPS X 3000VA/2700W 8 x Outlets Line Interactive Rack/Tower UPS
• CD with software
• Rack Mounting support rails
• Smart UPS signalling RS-232 cable
• Temperature Probe
• User Manual
• CD with software
• Rack Mounting support rails
• Smart UPS signalling RS-232 cable
• Temperature Probe
• User Manual
We sell a large range of UPS devices including commercial grade models requiring a licensed electrician, and/or additional cables/power requirements for installation. Warranty periods on UPS devices will exclude the battery, as they are a consumable item. We will be processing and shipping orders during the holiday period, however our services may be impacted due to the closure of some of our supplier warehouses. Full operations will resume on Monday 6th January. For the fastest response to your queries please email us at sales@elive.co.nz
Additional Details:
-
Stock Availability: 3 In Stock Now
-
Warranty: 3 Years
-
Manufacturer: APC Shop
-
Product Found In: UPS Devices
-
Model Number: SMX3000RMHV2U
-
Part Number: DD04301
