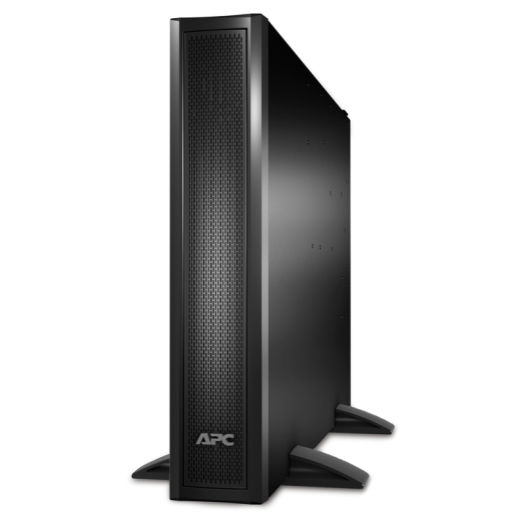

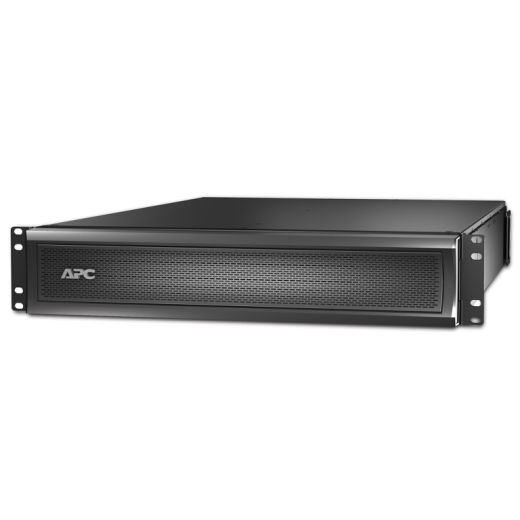

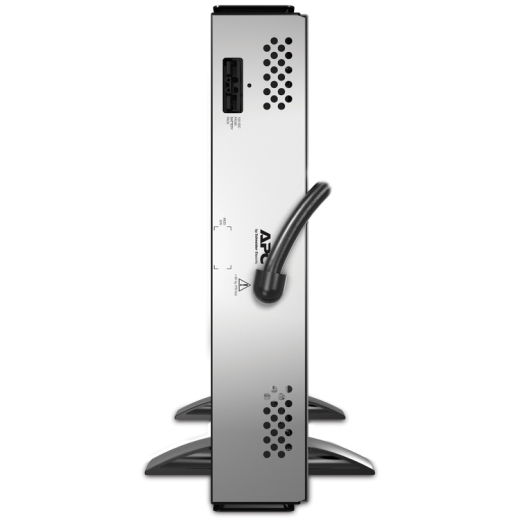

APC Smart-UPS X 120V Rack/Tower 2RU Extended Battery Module

Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.

Hot-swappable batteries:
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Intelligent battery management:
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Rack/Tower convertible:
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Scalable runtime:
Allows additional run time to be quickly added as needed.

User-replaceable batteries:
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

• Battery Output Voltage: 120 V
• Battery type: Lead-acid battery
• Battery mounting: Enclosed battery cartridge
• Expected Battery Life (years): 3 - 5
• RBC Quantity: 2
• Battery blocks per string: 10
• Operating Temperature: 0 - 40 °C
• Operating Relative Humidity: 0 - 95 (Non-condensing) %
• Operating Elevation: 0 - 3048meters
• Storage Temperature: -15 - 45 °C
• Storage Relative Humidity: 0 - 95 (Non-condensing) %
• Storage Elevation: 0 - 15240meters
• Dimensions (HxWxD): 85 x 432 x 667 mm
• Weight (approx.): 56.36 kg
