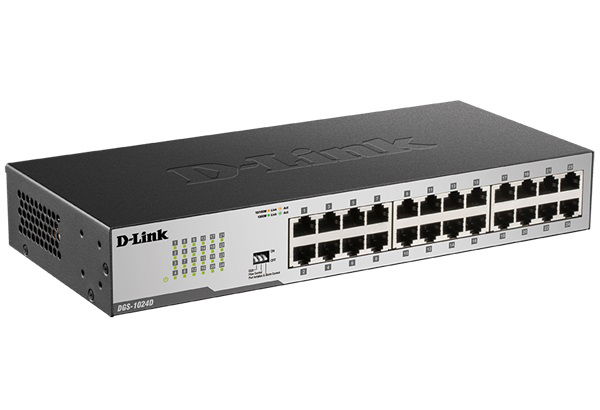

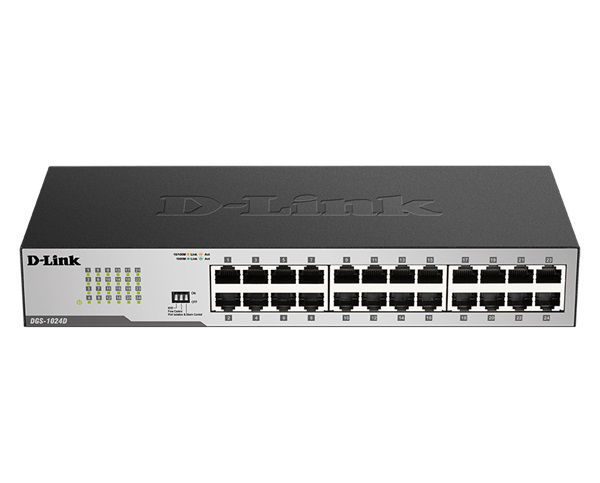

D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch

The D-Link DGS-1024D 24-Port Unmanaged Gigabit Switch series offer an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds while reducing energy consumption and minimising noise output.

Gigabit Connectivity:
The DGS-1024D switches bring the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the latest technology available to every computer and device connected to your network.

Improved Network Efficiency:
The DGS-1024D switches incorporate several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data re-transmission. In addition, Storm Control and Port Isolation mitigate the effects of broadcast storms caused by rogue software and malware, which can propagate across the network and bring communication to a standstill.

Innovative Design:
The DGS-1024D feature a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The 24-Port Gigabit Unmanaged Switch series is small, lightweight, wall-mountable, and is ideal for any business with demanding requirements and a small budget.

Green Technology:
The 24-Port Gigabit Unmanaged Switch series helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimise the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

General:

• Number of Ports: 24 10/100/1000 Mbps ports
• Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1p Quality of Service (QoS), IEEE 802.3x Flow Control supported for full-duplex, Auto-negotiation: IEEE 802.3az Energy-Efficient Ethernet (EEE)
• Data Transfer Rates: Ethernet: 10 Mbps/20 Mbps (half-duplex/full-duplex), Fast Ethernet: 100 Mbps/200 Mbps (half-duplex/full-duplex), Gigabit Ethernet: 2000 Mbps (full-duplex)
• Network Cables: Ethernet: 2-pair UTP Cat.3/4/5/5e, Unshielded Twisted Pair (UTP) Cable, Fast Ethernet: 2-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable, Gigabit Ethernet: 4-pair UTP Cat.5/5e, Unshielded Twisted Pair (UTP) Cable

Functionality:

• Green Features: Power saving by link status and cable length
• Security: Storm Control
• QoS (Quality of Service): 802.1p priority, 8 queues
• Cable Diagnostics: Indicated through port LEDs

Switching Features:

• Protocol: CSMA/CD
• Switching Capacity: 48 Gbps
• Max. Forwarding Rate: 35.71 mpps
• Packet Buffer RAM: 512 KBytes per device
• Filtering Address Table: 8K MAC addresses per device
• Packet Filtering/Forwarding Rate: Ethernet: 14,880 pps per port, Fast Ethernet: 148,800 pps per port, Gigabit Ethernet: 1,488,000 pps per port
• MAC Address Learning: Self-learning, auto-aging
• Forwarding Mode: Store-and-forward

Physical:

• Indicator LEDs: Power LED (per device), Link/Activity/Speed LEDs (per port)
• DIP Switch: Energy-Efficient Ethernet (EEE), Flow Control, Port Isolation and Storm Control
• AC Inputs: Internal universal power supply, 100~240 V AC; 50 to 60 Hz, 0.3 A max
• Maximum Power Consumption: 15.2 W
• Standby Power Consumption: 6.98 W
• Maximum Heat Dissipation: 51.86 BTU/h
• MTBF: 485,750 hours
• Acoustic Value: 0 dB(A) Fanless
• Dimensions: 280 x 126 x 44 mm
• Weight: 1.004 kg
• Operating Temperature: 0 ºC to 40 ºC (32 ºF to 104 ºF)
• Storage Temperature: -10 ºC to 70 ºC (14 ºF to 158 ºF)
• Operating Humidity: 0% to 95% RH, non-condensing
• Storage Humidity: 0% to 95% RH
