Product Description:

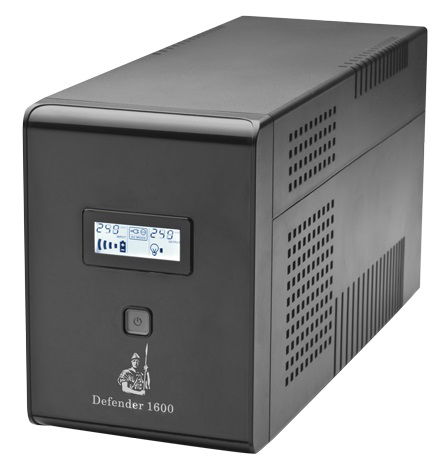

Dynamix Defender 1600VA/960W 6 x Outlets Line Interactive Tower UPS
Overview:
The Defender range uses Automatic Voltage Regulation (AVR) to minimize the effects of fluctuations in input voltage protecting your valuable equipment from power line disturbances.
The stylish LCD display, user replaceable batteries and six Australian sockets makes the Defender the complete package at this level.
Features:
• Fanless Design. Ideal for Home Theatre Systems
• USB Communication for Monitoring & Shutdown Software Included
• Surge Protection, Best in its Class
• Excellent microprocessor control guarantees high reliability
• NZ outlets for UPS and Surge protection (x3)
• NZ outlets for Surge protection only (x3)
• Buck and boost AVR for voltage stabilization
• User replaceable batteries
• Silent Operation (No fans included)
• Auto restart when AC returns
• Off-mode charging
• Cold start function
• USB communication with sophisticated NetGuard software
• USB communication port is compatible with Synology NAS products
Suitable for:
• Home Office
• Work Stations
• Rack Equipment
• CCTV
• Point of Sale
• Home Theatre
Specifications:
• Model: PSD1600
• Capacity: 1600VA / 960W
• Topology: Line Interactive
Input
• Voltage: 240Vac (Nominal)
• Voltage Range: 177-290Vac
• Frequency Range: 50/60Hz ±5Hz (Auto sensing)
Output
• Output Voltage: 240Vac ±10%
• Frequency: AC mode tracks utility. Battery mode 50Hz ±1%
• Frequency Range: 50Hz or 60Hz ±1Hz
• Transfer Time: 6ms (Typical)
• Waveform (Battery Mode): Simulated Sine Wave
• Outlets: 3x Surge Protection and 3x Surge Protection + UPS
Battery
• Battery Type & Number: 12V* 9AH (x2)
• Typical Recharge Time: 6 hours recovery to 90% capacity
• Backup Time (50% Load): 4min
Protection
• Full Protection: Overload, discharge, thermal, short circuit and overcharge protection
• Surge Protection: 936Joules / 19500Amps
Communications & Management
• Interface: USB Interface
• Software: NetGuard supports Windows, Linux, Unix & MAC
• LCD Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload
• Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault, Overload
Physical
• Dimensions (D x W x H): (397 x 146 x 205)mm
• Net Weight: 11.5kg
Operating Environment
• Temperature: 0 - 40?C
• Humidity: 0 - 90% (RH Non-condensing)
• Noise Level:
We sell a large range of UPS devices including commercial grade models requiring a licensed electrician, and/or additional cables/power requirements for installation. Warranty periods on UPS devices will exclude the battery, as they are a consumable item. We will be processing and shipping orders during the holiday period, however our services may be impacted due to the closure of some of our supplier warehouses. Full operations will resume on Monday 6th January. For the fastest response to your queries please email us at sales@elive.co.nz
Questions & Answers
Have a technical question about this product?
Q:
What replacement battery does the Dynamix Defender 1600VA/960W UPS use?
A:
The replacement battery for the Dynamix Defender 1600VA UPS is the Dynamix UPS12V9. Please note this UPS unit does require two of these batteries.
Additional Details:
-
Stock Availability: 353 In Stock Now
-
Warranty: 2 Years
-
Manufacturer: Dynamix Shop
-
Product Found In: UPS Devices
-
Model Number: UPSD1600
-
Part Number: CD03091
