Product Description:

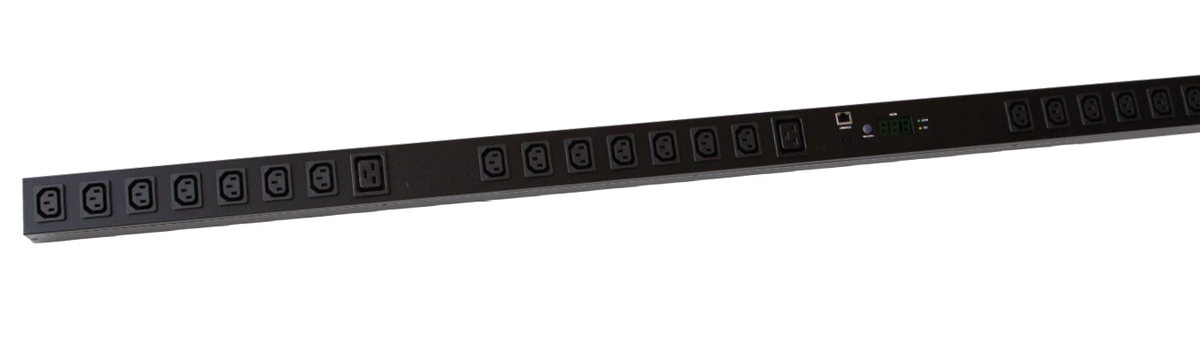

Dynamix 24 Port 16A Metered Power Distribution Unit
Dynamix 24 Port 16A Metered PDU
Features:
• Power Monitoring by True RMS Meter
Specifications:
General
• Output: (21) IEC 320 C13C, (3) IEC 320 C19
• Input: (1) IEC 320 C20 Inlet (IEC 320 C19 to C20) with 3M power cord
• Protection: (1) 16 AMP Circuit Breaker
Communication
• SSL Indication: (1) Yellow LED
• DHCP Indication: (1) Green LED
• Network: (1) RJ45 for Ethernet
• PDU ID: 1 Digits Seven Segment for PDU Identification
• Current Meter: 3 Digits Seven segments for True RMS meter
• Range: 0A ~ 20A
• Resolution: 0.1A
• Precision: +/-2% +/-0.1AMP
Operation
• Nominal Voltage: 230V
• Voltage: 200V ~ 240V Full Range
• Frequency: 50/60Hz Full Range
• Max. Output Current: 16A
• Temperature: 0°C ~ 45°C
• Humidity: 0% ~ 90%
• Size: 56x1645x45mm
• Weight: 4kg
• Output: (21) IEC 320 C13C, (3) IEC 320 C19
• Input: (1) IEC 320 C20 Inlet (IEC 320 C19 to C20) with 3M power cord
• Protection: (1) 16 AMP Circuit Breaker
Communication
• SSL Indication: (1) Yellow LED
• DHCP Indication: (1) Green LED
• Network: (1) RJ45 for Ethernet
• PDU ID: 1 Digits Seven Segment for PDU Identification
• Current Meter: 3 Digits Seven segments for True RMS meter
• Range: 0A ~ 20A
• Resolution: 0.1A
• Precision: +/-2% +/-0.1AMP
Operation
• Nominal Voltage: 230V
• Voltage: 200V ~ 240V Full Range
• Frequency: 50/60Hz Full Range
• Max. Output Current: 16A
• Temperature: 0°C ~ 45°C
• Humidity: 0% ~ 90%
• Size: 56x1645x45mm
• Weight: 4kg
We will be processing and shipping orders during the holiday period, however our services may be impacted due to the closure of some of our supplier warehouses. Full operations will resume on Monday 6th January. For the fastest response to your queries please email us at sales@elive.co.nz
Additional Details:
-
Stock Availability: Out of Stock!
-
Warranty: 2 Years
-
Manufacturer:
Dynamix Shop
-
Product Found In: Surge Protectors & Outlets
-
Model Number: RPME-16A24
-
Part Number: CD04407
