Product Description:

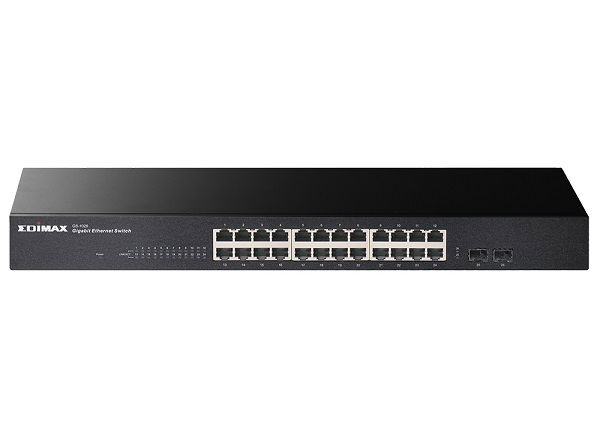

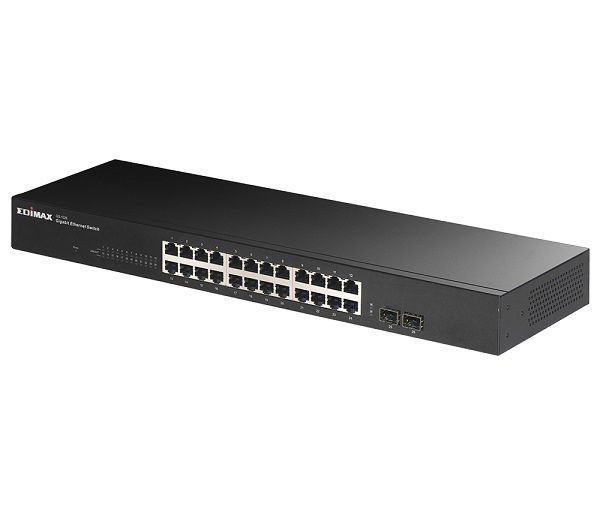

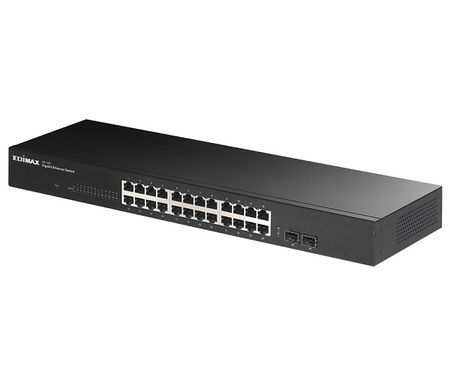

Edimax GS-1026 V3 24-Port Gigabit Rack-Mount Un-Managed Switch with 2 SFP Slot
The GS-1026 V3 is 26-Port Gigabit switch with 24-port Gigabit Ethernet RJ45 ports and 2 SFP ports/uplinks is designed to upgrade or expand the network with high-speed, enhanced performance while maintaining a compact form factor. It boasts outstanding performance and high efficiency, while its store and forward packet-switching technology and standard IEEE 802.11p QoS feature offer improved traffic and reliable data transfer with priority of video and voice. It is ideal for network connectivity in the home, small office, small-and-Medium business and enterprise environments.
Features:
Gigabit High Speed & Long Distance SFP Uplinks:
Equipped 24 Gigabit Ethernet ports and 2 SFP ports/uplinks featuring full-duplex and 10KB jumbo frames for high-speed networks
QoS for Improved Traffic:
Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
High Performance & Reliable Connection:
Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
Energy Efficient & Power Saving:
Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
Plug-and-Play & Flexible Deployment:
No software or configuration required and designed for desktop or rack-mounted flexible deployment
Equipped 24 Gigabit Ethernet ports and 2 SFP ports/uplinks featuring full-duplex and 10KB jumbo frames for high-speed networks
QoS for Improved Traffic:
Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
High Performance & Reliable Connection:
Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction and loop detection
Energy Efficient & Power Saving:
Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
Plug-and-Play & Flexible Deployment:
No software or configuration required and designed for desktop or rack-mounted flexible deployment
Specifications:
Performance:
• Switching Capacity: 52Gbps
• MAC Address: 8K
• Buffer Memory: 4.1Mb
• Jumbo Frames: 10K (Bytes)
• Filtering / Forwarding Rates: Max. 38.6Mpps, 1000Mbps port – 1,488,000pps, 100Mbps port – 148,800pps, 10Mbps port - 14,880pps
Environment:
• Operating Temperature: 0 ~ 40℃
• Storage Temperature: -40 ~ 70℃
• Operating Humidity (Non-condensing): 10 ~ 90%
• Storage Humidity (Non-condensing): 5 ~ 95%
Hardware:
• Ports: 24 RJ-45 10/100/1000Base-T ports, 2 SFP slots
• Transmission Method: Store and forward
• LED Indicators: Per port: Link/Act, Per unit: Power

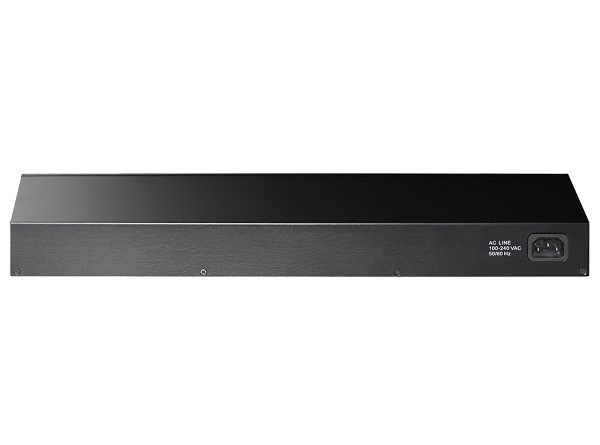

• Power Input: 100-240V AC, 50-60Hz, internal power supply
• Mounting: Desktop / rack-mount (rack-mount kit included)
• Housing: Metal
• Fan: Fanless
• Dimensions (W x H x D): 441 × 44 × 131mm
• Weight: 1.83kg
• Switching Capacity: 52Gbps
• MAC Address: 8K
• Buffer Memory: 4.1Mb
• Jumbo Frames: 10K (Bytes)
• Filtering / Forwarding Rates: Max. 38.6Mpps, 1000Mbps port – 1,488,000pps, 100Mbps port – 148,800pps, 10Mbps port - 14,880pps
Environment:
• Operating Temperature: 0 ~ 40℃
• Storage Temperature: -40 ~ 70℃
• Operating Humidity (Non-condensing): 10 ~ 90%
• Storage Humidity (Non-condensing): 5 ~ 95%
Hardware:
• Ports: 24 RJ-45 10/100/1000Base-T ports, 2 SFP slots
• Transmission Method: Store and forward
• LED Indicators: Per port: Link/Act, Per unit: Power
• Power Input: 100-240V AC, 50-60Hz, internal power supply
• Mounting: Desktop / rack-mount (rack-mount kit included)
• Housing: Metal
• Fan: Fanless
• Dimensions (W x H x D): 441 × 44 × 131mm
• Weight: 1.83kg
Additional Details:
-
Stock Availability: 87 In Stock Now
-
Warranty: 1 Year
-
Manufacturer: Edimax Shop
-
Product Found In: Un-Managed Switches
-
Model Number: GS-1026V3
-
Part Number: CD05401
