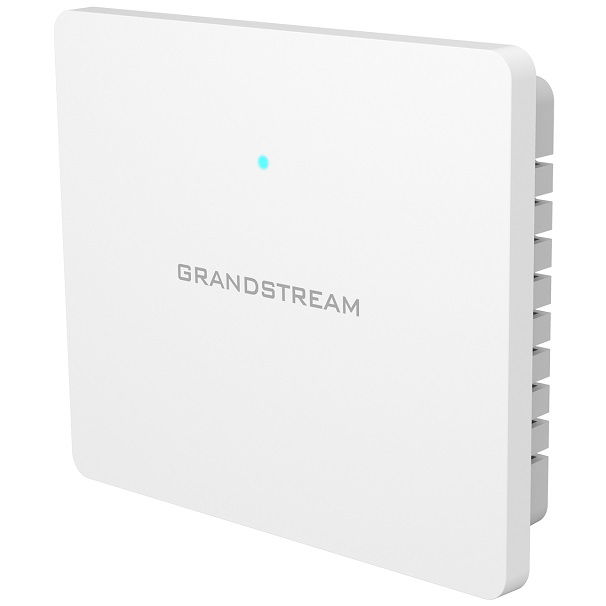

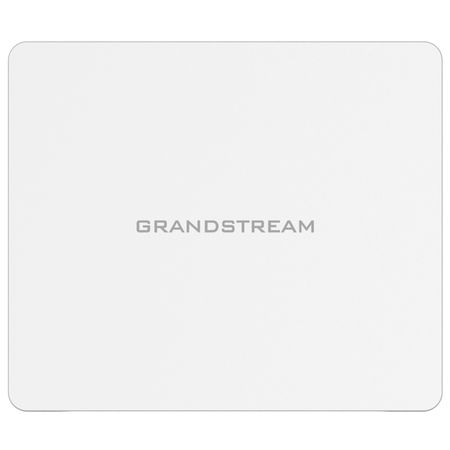

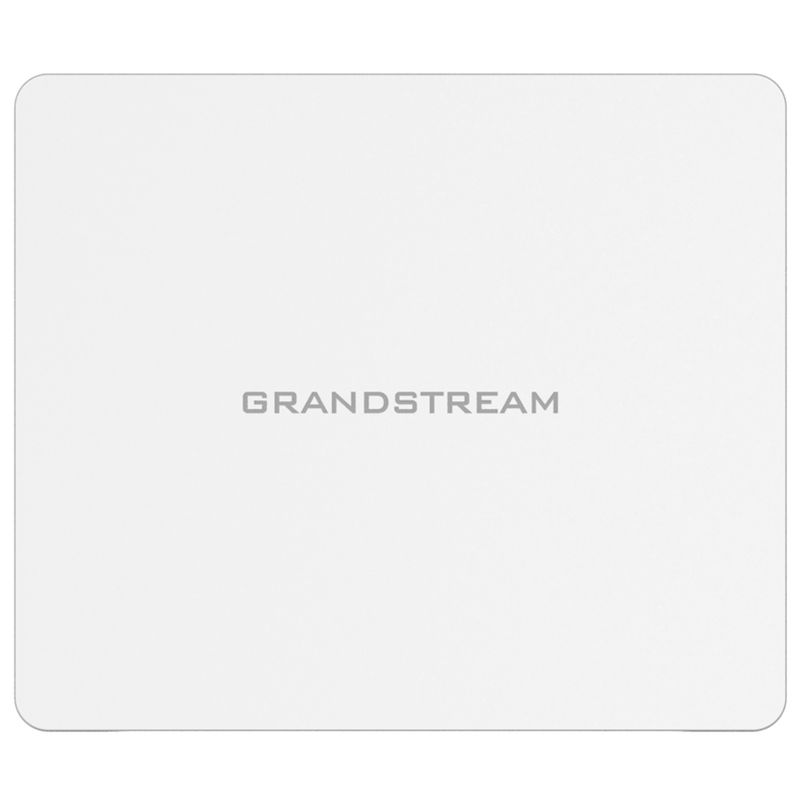

Grandstream GWN7602 Mid-Tier 802.11ac WiFi Access Point

The GWN7602 is a compact Wi-Fi access point designed for small businesses, homes, offices, hotels and more. It provides three 100Mb ports to provide IP phones, IPTV, computers and similar devices with ethernet while also providing an uplink Gigabit network port with PoE/PoE+. The GWN7602 offers dual band 2x2:2 MIMO technology and a sophisticated antenna design for ideal network throughput that supports up to 80 clients and a 100 meter coverage range.

• 1.17Gbps aggregate wireless throughput, 1x Gigabit and 3x 100Mbit wireline speed
• Up to 100 meters coverage range
• Self power adaptation upon auto detection of PoE/PoE+ and PSE
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Support up to 80 Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures

• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac
• Antennas: 2 dual band internal antennas, Antenna 1 - 2.4GHz: gain 3.0dBi, 5GHz: gain 3.5dBi, Antenna 2 - 2.4GHz: gain 3.5dBi, 5GHz: gain 3.0dBi
• Wi-Fi Data Rates: IEEE 802.11ac: 6.5 Mbps to 867Mbps, IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, IEEE 802.11n: 6.5Mbps to 300Mbps, IEEE 802.11b: 1, 2, 5.5, 11Mbps, IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Frequency Bands: 2.4 GHz Radio: 2412 – 2484 MHz; 5 GHz Radio: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz
• Channel Bandwidth: 2.4G: 20 and 40MHz; 5G: 20, 40, 80MHz
• System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise
• Mesh: 5G radio
• Coverage Range: Up to 100 meters
• Maximum TX Power: 2.4G: 21 dBm; 5G: 21 dBm
• Receiver Sensitivity: 2.4G: 802.11b:-96dBm@1Mbps,-88dBm@11Mbps;802.11g:-93dBm@6Mbps, -76dm@54Mbps, 802.11n20MHz:-92dBm@MCS0,-73dBm@MCS7;802.11n40MHz: -88.5dBm@MCS0,-71dBm@MCS7; 5G: 802.11a: -91dBm@6Mbps, -73.5dBm@54Mbps; 802.11ac:VHT20: -89.5dbm@MCS0, -71.5dBm@MCS7, -64dBm@MCS8; VHT40: -87.5dBm@MCS0; -69.5dBm@MCS7, -62dBm@MCS9, VHT80, -83.5dBm@MCS0, -65.5dBm@MCS7, -58.5dBm@MCS9
• SSIDs: 8 SSIDs total, 4 per radio (2.4ghz and 5 ghz)
• Concurrent Clients: Up to 80

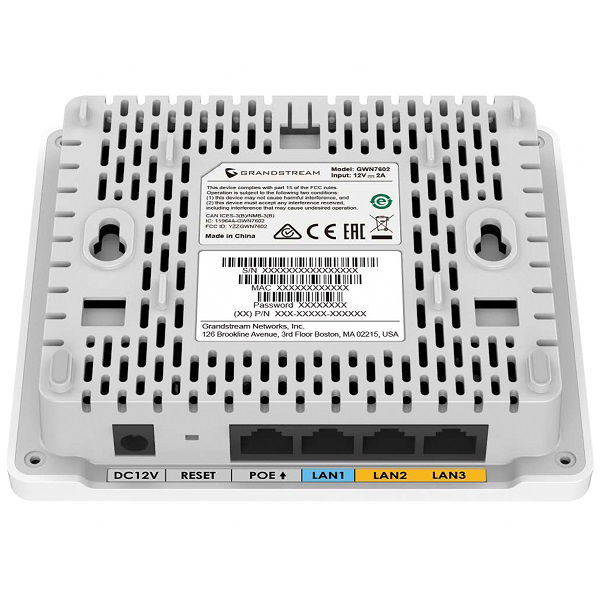

• Network Interfaces: 1 x 10/100/1000M uplink Ethernet port with POE/POE+, 2 x 10/100M Ethernet port with PSE , 1 x 10/100M Ethernet port
• Auxiliary Ports: 1x Reset Pinhole
• Mounting: Wall mountable
• LEDs: 1x tri-color LEDs for device tracking and status indication
• Network Protocols: IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• QoS: 802.11e/WMM, VLAN, TOS
• Network Management: GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
• Power and Green Energy Efficiency: Support 802.3 az; PoE 802.3af/ 802.3at, PSE max output per port: 6W; Max Consumption: 20 W
• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing
• Compliance: FCC, CE, RCM, IC
• Physical Unit Dimension:135 x 115 x 30mm
• Unit Weight: 188g
