Product Description:

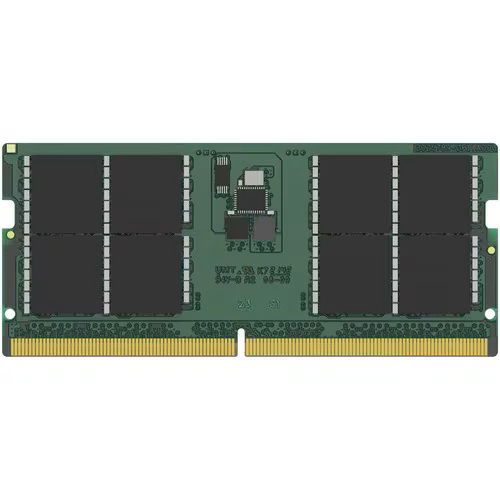

Kingston ValueRAM 32GB DDR5 5200Mhz Non-ECC SODIMM Memory Module
ValueRAM's KVR52S42BD8-32 is a 4G x 64-bit (32GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
Features:
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
Specifications:
• Memory Capacity: 32GB
• CL(IDD): 42 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Power Supply: VDD = 1.1V Typical
• Operating Temperature: 0 deg C to +85 deg C
• Storage Temperature: -55 deg C to +100 deg C
• CL(IDD): 42 cycles
• Row Cycle Time (tRCmin): 48ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Power Supply: VDD = 1.1V Typical
• Operating Temperature: 0 deg C to +85 deg C
• Storage Temperature: -55 deg C to +100 deg C
We will be processing and shipping orders during the holiday period, however our services may be impacted due to the closure of some of our supplier warehouses. Full operations will resume on Monday 6th January. For the fastest response to your queries please email us at sales@elive.co.nz
Additional Details:
-
Stock Availability: 1 In Stock Now
-
Warranty: Lifetime
-
Manufacturer:
Kingston Shop
-
Product Found In: Laptop Memory (RAM)
-
Model Number: KVR52S42BD8-32
-
Part Number: T057261
