1x HDMI in to 4x RJ45 out. 4x Receivers Included. Supports 1080@60Hz over Cat6 for up to 40m. Remote power receivers from transmitter. With local HDMI out.
This HDMI extender/splitter works with 4x HDMI Cat6 extender/receivers. Can split and/or extend from 1x HDMI source to 4x HDMI displays over a single Cat6/6a cable for up to 40m. It also supports IR passback and EDID pass through. Ideal solution for HDMI exhibitions, video conferences and show centres.
Product Description:

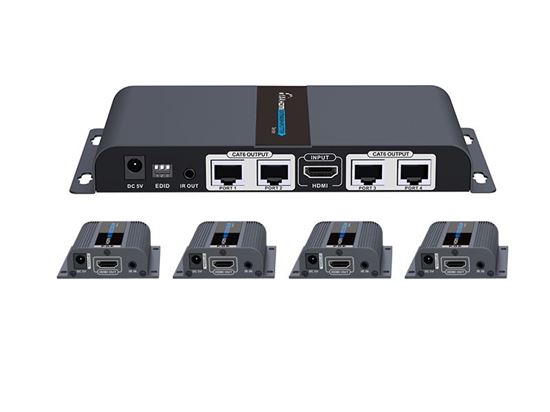

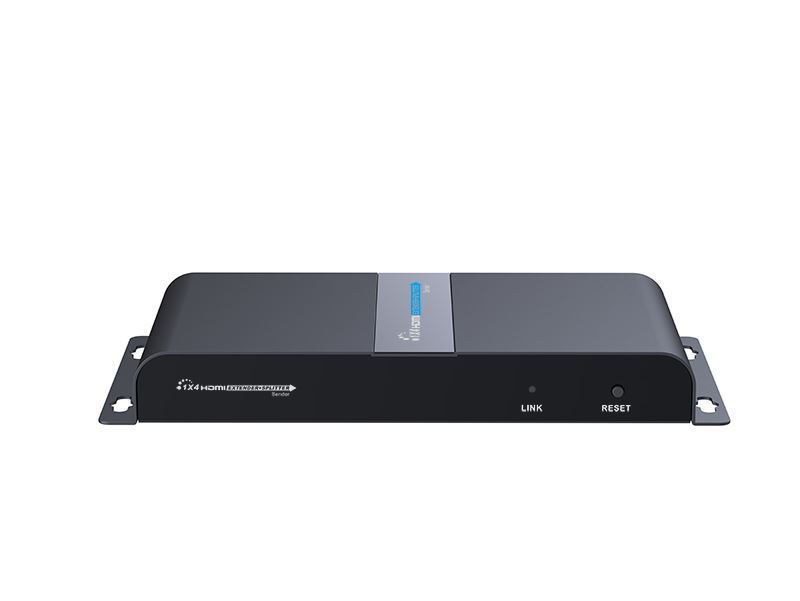

Lenkeng 1 in 4 out HDMI Extender and Splitter
Features:
• Distributes 1x HDMI source to 4x HDMI displays over network cable simultaneously.
• Supports one HDMI loop-out
• Compatible with Cat6/6a network cables
• The transmission distance is up to 40m
• The highest resolution supported is 1920x1080@60Hz
• Supports 20 ~ 60Hz IR passes back
• Supports EDID Setting function
• Supports power from the transmitter to receiver unit over the Cat6 cable
• Plug and play
• Wall-mounted function, easy installation
• Supports one HDMI loop-out
• Compatible with Cat6/6a network cables
• The transmission distance is up to 40m
• The highest resolution supported is 1920x1080@60Hz
• Supports 20 ~ 60Hz IR passes back
• Supports EDID Setting function
• Supports power from the transmitter to receiver unit over the Cat6 cable
• Plug and play
• Wall-mounted function, easy installation
Specifications:
• HDMI signal: HDMI1.3, Compatible with HDCP1.2
• Input: 1 x HDMI
• Output: 4 x RJ45
• Support resolutions: HDCP1.2
• HDMI resolutions supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Transmit distance: Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable
• IR signal: Support 20~60kHz IR device
• EDID: Supports EDID setting function
• Working temperature: 0°C~60°C
• Power supply: DC5V/3A
• Power Consumption: Below 15W
• Transmitter Dimensions: 190 x 95.9 x 23.9mm
• Receiver Dimensions: 71.6 × 66.6 × 22.6mm
• Input: 1 x HDMI
• Output: 4 x RJ45
• Support resolutions: HDCP1.2
• HDMI resolutions supported: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
• Transmit distance: Full HD resolution 1080p@60Hz up to 40 meters via CAT6 cable
• IR signal: Support 20~60kHz IR device
• EDID: Supports EDID setting function
• Working temperature: 0°C~60°C
• Power supply: DC5V/3A
• Power Consumption: Below 15W
• Transmitter Dimensions: 190 x 95.9 x 23.9mm
• Receiver Dimensions: 71.6 × 66.6 × 22.6mm
Questions & Answers
Have a technical question about this product?
Q:
Does this Lenkeng HDMI Extender and Splitter have an audio return channel?
A:
Unfortunately, no. This Lenkeng HDMI Extender and Splitter does not have an audio return channel.
Q:
Is this the V2 version of the Lenkeng HDMI Extender and Splitter
A:
Unfortunately this version is not the pro v2.0 model.
Additional Details:
-
Stock Availability: 66 In Stock Now
-
Warranty: Supported by Manufacturer
-
Manufacturer: Lenkeng Shop
-
Product Found In: AV Extenders
-
Model Number: LKV714PRO
-
Part Number: CD04508
