Microsoft Surface Hub 2 4K USB-C Smart Conference Camera

Remote participants have a seat at the table with the best possible view of the room thanks to AI-powered Surface Hub 2 Smart Camera. People in the room can move freely knowing they’ll be captured on camera as they interact with remote team members in vibrant and clear life-size video with sharp focus and a wide field of view.

The best view of the room:
AI-powered Surface Hub 2 Smart Camera dynamically adjusts the video feed, re-framing the view when someone leaves, more people come in, or a person interacts with content on the display.

Meetings are always in focus:
With sharp focus on the foreground and background, remote participants can see people interact with content on the Surface Hub, even as they can see everyone else in the room.

Elevate every video call:
Surface Hub 2 Smart Camera has a wide field of view that’s greater than 130°, digital pan-tilt-zoom, high-quality glass optics, and a great low light sensor.

• Memory: 1 GB DRAM, 8 GB eMMC (None user accessible)
• Processor: Intel Myriad X 2085 (Image Signal Processor and NN SOC with 1 TFLOPS of DNN acceleration and 18 cores)
• Security: Camera software updatable through Windows Update via Hub, Software updates protected by signature security process
• Software: Built-in functionality: “Auto framing” (automatically frames people in field of view), Image optimization (auto exposure, auto white balance, anti-flicker), Tilt angle adapting de-warp/un-distortion for natural faces across the field of view; Upgradability: Internal Camera firmware can be updated with new functionality or bug fixes through Windows Update
• Sensor Resolution: 4K
• Connections: Mounting: Top of Surface Hub 2S 85” and 50” only, Mechanical & Electrical Interface to Hub: USB-C break-away magnetic attach to top of bezel; Interface to Surface Hub 2S 85”and 50”: Customized USB-C; Reversible USB-C connection: Not supported; Hub Rotation: Not supported

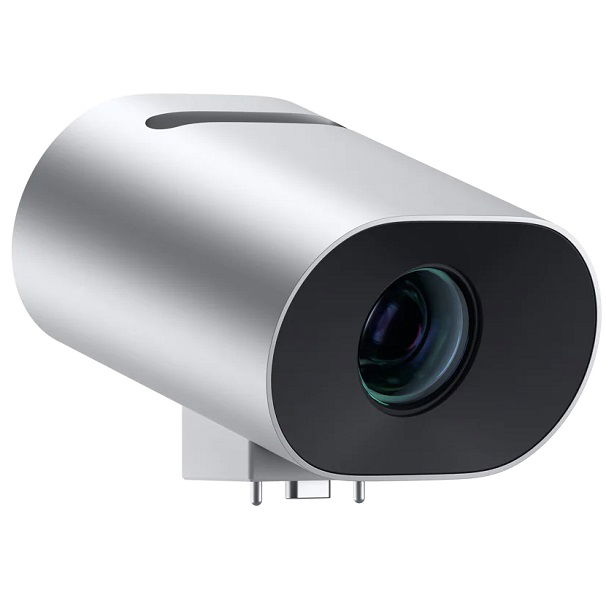

• Cameras, video, and audio: Fixed focus lens with 11 glass elements, 1 RGB Camera Module, Working Distances: 1.0 – 7.4m, HFOV: 136 degrees, Tilt range: +20deg and -20deg from horizontal. Surface Hub 2 Smart Camera adapts its de-warp mesh to un-distort the image according to the camera tilt angle, so the image always looks natural, Video Format: 16:9 (NV12 at 360p, 720p, 1080p, 1440p), Privacy cover magnetically attaches to front of camera for privacy, and magnetically attaches to back of camera for convenient storage

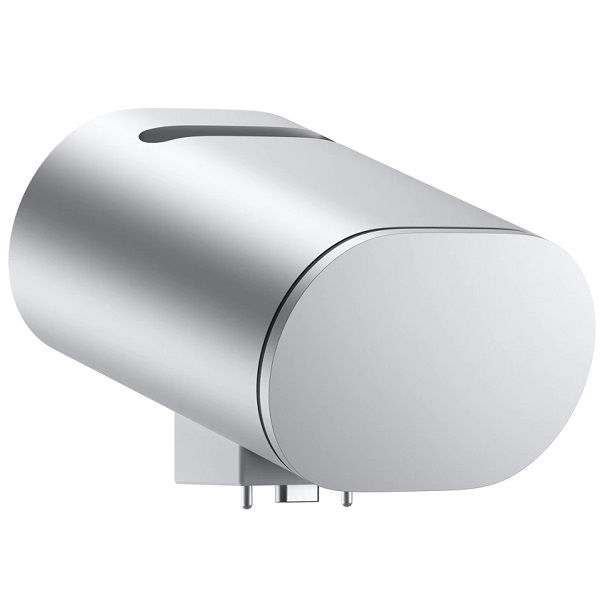

• Exterior: Casing: Anodized Aluminum; Color: Platinum; Physical buttons: None; One white LED indicator for camera status (indicator is only visible when ‘On’)
• Dimensions (H x W x D): 43 x 67 x 66 mm
• Weight: 180 g with Camera Cover

• Surface Hub 2 Smart Camera with privacy cover
• Quick Start Guide
• Safety and warranty documents
