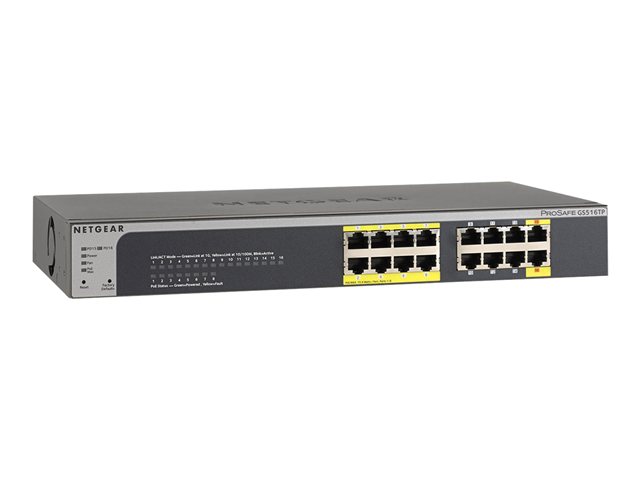

Netgear Prosafe 16-port Gigabit PoE Smart Switch

The Netgear new generation of Gigabit PoE Smart Switches offers powerful L2 and L2+ features, better PoE functions, and enhanced performance and usability. They are purposely designed for the converged networks where voice, video, data are all carried on a single network platform for network efficiency, operational cost savings, and ease of management.

Features:

• Auto Voice VLAN for fast and reliable deployment of VoIP
• Static routing, helps to route internal traffic for more efficient use of network resources
• IGMP and MLD snooping, providing advanced multicast filtering
• Comprehensive IPv6 supporting management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based network
• Easy to manage via web-Based Management GUI or Smart Control Center for multi-switch deployment

Specifications:

• Interfaces: 16 10/100/1000 Mbps auto-sensing Gigabit-Ethernet switching ports
• PoE Ports: Port 1-8 IEEE 802.3af PoE, providing up to 15.4w of DC power through each port
• Bandwidth: 32Gbps
• Mean Time Between Failures (MTBF): 479,350 hrs

L2 Services - VLANs
• IEEE 802.1Q VLAN Tagging
• Video VLAN
• Voice VLAN - Based on phones OUI bytes (internal database, or usermaintained) or protocols (SIP, H323 and SCCP)

L2 Services - Availability
• IEEE 802.3ad - LAGs
• LACP ( (8 LAGS with max. of 8 members in each LAG))
• Broadcast Storm Control
• IEEE 802.3x (Full Duplex and flow control)
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree
• IEEE 802.1s Multiple Spanning Tree

L2 Services - Multicast Filtering
• IGMP Snooping (v1, v2 and v3)
• MLD Snooping Support (v1 and v2)
• IGMP Snooping queriers
• Block unknown Multicast

L3 Services - DHCP
• DHCP Client
• DHCP Snooping

L3 Services - IPv4 Routing
• Static Routing
• VLAN Routing

Network Security
• IEEE 802.1x
• Guest VLAN
• RADIUS based VLAN assignment via .1x
• MAC-based .1x
• Network Storm Protection
• Broadcast, Unicast, Multicast Protection

Certifications
• CE mark, commercial
• FCC Part 15 Class A, VCCI Class A
• Class A EN 55022 (CISPR 22) Class A
• Class A C-Tick
• EN 50082-1
• EN 55024
• CCC

Quality of Service (QoS)
• Access Lists
• L2 MAC, L3 IP and L4 Port ACLs
• Ingress rate limiting
• Egress rate limiting
• Support for IPv6 fields
• Diff Serv QoS
• IEEE 802.1p COS
• Dst MAC and IP
• IPv4 and v6 DSCP
• IPv4 and v6 TOS
• WRR (Weighted Round Robin)
• Strict Priority queue technology
• Auto-VoIP - Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address
• Auto Video
• Port Mirroring

Physical Specifications
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Storage Temperature: 4° to 158°F (–20° to 70°C)
• Operating Humidity: 90% maximum relative humidity, noncondensing
• Storage Humidity: 95% maximum relative humidity, noncondensing
• Altitude: 10,000 ft (3,000 m) maximum
• Heat Dissipation (at AC 97VAC/47Hz and full PoE load): 84 Btu/H
• Acoustic noise(ANSI-S10.12): 24.6dB
• Power Consumption (When all ports used): 92.1w
• Dimensions: 328 x 169 x 43 mm
• Weight: 2.21kg
