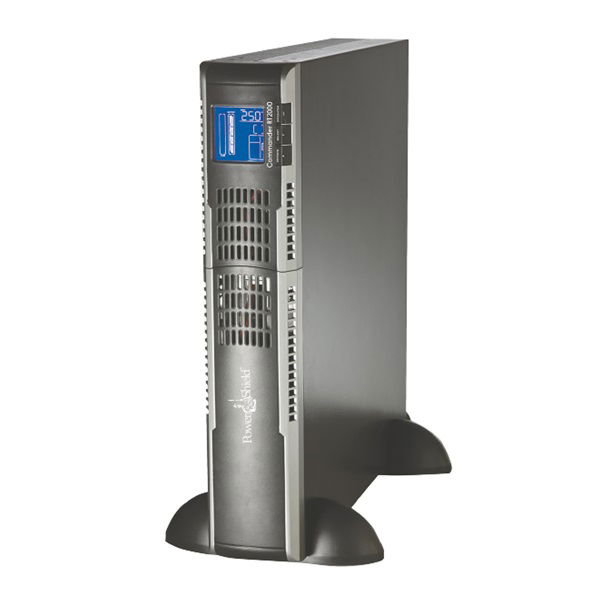

PowerShield Commander RT 2000VA 1800W 8 Outlet Line Interactive Rackmount Tower UPS

With pure sine wave output, the Commander Rackmount Tower guarantees compatibility for all kinds of loads. It’s perfect power protection for versatile applications such as networking, telecom and other mission-critical applications. The ECO mode function allows cost-effective operation of UPS Systems as high as 98%. In this operation mode, load is supplied by the mains. In the event of a mains failure, the inverter takes over the load and provides supply continuity to the connected systems.

• Pure sine wave output
• Rack/Tower design
• Built-in boost and buck AVR
• Output power factor 0.9
• Programmable power management outlets
• ECO mode operation for energy saving (ECO)
• Emergency Power Off Function (EPO)
• Hot-swappable battery design

General:
• Capacity: 2000VA/1800W
• Topology: Line Interactive, Pure Sine Wave
• Dimension (D x W x H): 480 x 438 x 88 mm
• Weight (Net/Gross): 23kg / 25kg
• Temperature: 0 - 40°C
• Humidity: 0 - 90% (RH Non-condensing)
• Noise Level: < 45dB

Input:
• Voltage: 240Vac (Nominal)
• Voltage Range: 162-290Vac
• Frequency Range: 50/60 Hz (Auto Sensing) ±5Hz

Output:
• Output Voltage (AC Mode): 240Vac (Selectable200/208/220/230Vac) ±10% AVR
• Voltage Regulation (Batt. Mode): ±3%
• Frequency Range (Batt. Mode): 50Hz or 60Hz ± 1Hz
• Current Crest Ratio: 3:1
• Transfer Time: 6ms (Typical)
• Waveform (Batt. Mode): Pure Sine Wave
• IEC Outlets: 10A, C13 x 5 10A, C13 x 5 15A, C19 x 1
• Australian Sockets: 3

Efficiency:
• ECO Mode (Advanced): 98%
• Battery Mode: 91%

Battery:
• Battery Type & Number: 12V*9Ah (x 4)
• Typical Recharge Time: 4 Hours Recover to 90% Capacity
• Additional Battery Banks: PSCRTBB8 (x1)

Protection:
• Full Protection: Overload, discharge, thermal, short circuit and overcharge protection
• Surge Protection: 1560Joules / 32500Amps

Communcations & Management:
• Interface: USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact
• Software: PowerShield NetGuard software supports Windows®, Linux, Unix, and MAC
• HID: Supports Windows, Apple, Linux, NAS and various industrial controllers
• LCD Display/Alarm: AC mode, Batt. mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Low Batt., Batt. Time remaining
• Audible Alarm: Battery mode, low battery (batt. mode), fault, oveload
