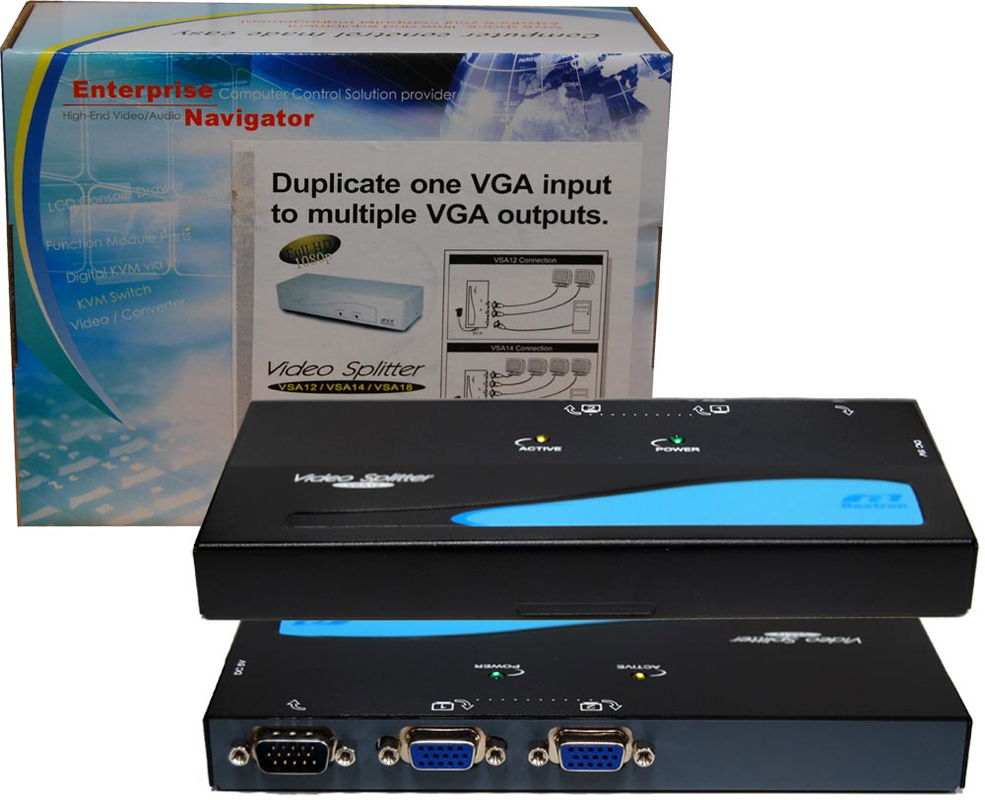

Rextron 1 to 2 VGA Monitor Multiplexer 300/350 MHz

Rextron 1 to 2 VGA Monitor Multiplexer 300/350 MHz

(5V DC Power Adapter included)

VGA Splitters, broadcast and boost one VGA signal source for 2 VGA monitors. There is no software or interface card to install. Simply connect the cables, power up the system and you are ready to duplicate VGA images to multiple monitors with excellent clarity. Superb high bandwidth circuit enables a highresolution VGA signal of 350 MHz to be displayed on multiple monitors.

Features

• Duplicate one VGA input to multiple VGA outputs
• Effective transmission distance: 65M (210ft)with UL-2919 rated VGA cables
• Automatic power-save when VGA input is lost
• Applicable to VGA, SVGA and multi-sync monitors
• Cascaded operation for increased VGA outputs
• Crisp clear VGA images

Specifications

• Number of VGA Output: 2
• Signal Bandwidth 350MHz
• Signal Type VGA, SVGA, Multi-Sync
• LED Indicators: Power (Green) x 1, Active (Amber) x 1
• Cable Length 65M (210ft) Max.
• Input HDB15 Male x 1
• Output HDB15 Female x 2
• Enclosure Metal
• Weight (g) 400
• Power Consumption (Max.) AC 9V, 200mA Normal Operation; 10mA, Power-Save Mode
• Dimensions H x W x D (mm) 20 x 85 x 180
