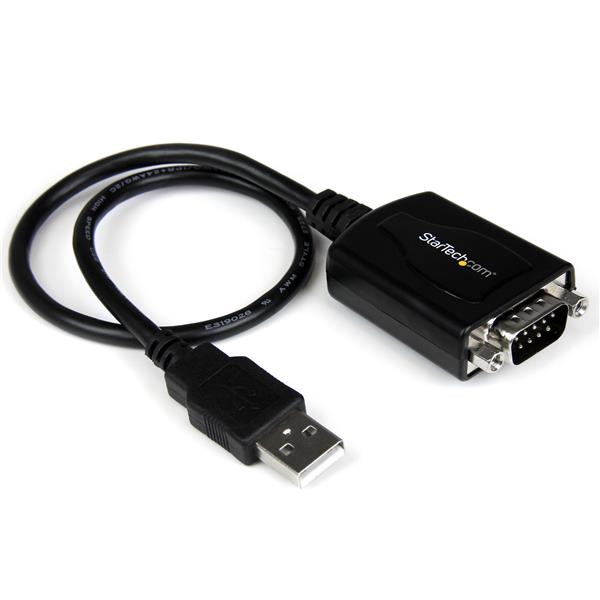

StarTech USB 2.0 to DB9 RS232 Serial Adapter Cable

The ICUSB2321X Professional grade USB Serial Adapter cable converts a USB 2.0 port into an RS232 serial port allowing you to connect to, monitor and control your serial devices. A durable, single cable design makes this the perfect solution for mobile technicians/administrators that require serial connectivity. Once connected, the USB to serial adapter retains assigned serial COM port values, allowing the same values to automatically be re-assigned to the port provided by the adapter in the event it is disconnected, then re-connected to the host computer.

• USB to Straight-Through RS232 Serial Adapter
• COM Port assignments maintained across reboot
• Single cable design for portability

Hardware:
• Bus Type: USB 2.0
• Chipset ID: Texas Instruments - TIUSB3410
• Interface: Serial
• Ports Style: Cable Adapters
• Ports: 1

Performance:
• FIFO: 32 Bytes
• Max Baud Rate: 230.4 Kbps
• Serial Protocol: RS-232

Connector(s):

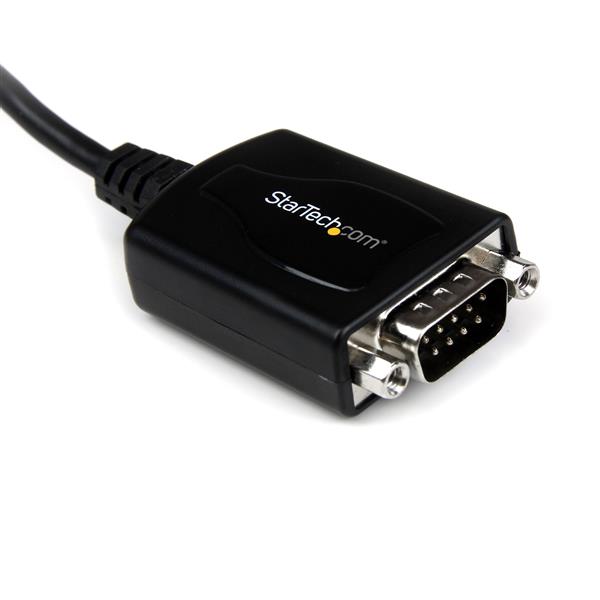

• 1x DB-9 (9 pin, D-Sub) Male
• 1x USB Type-A (4 pin) USB 2.0 Male

Environmental:
• Humidity: 5~85% RH
• Operating Temperature: -10°C to 80°C (14°F to 176°F)
• Storage Temperature: -20°C to 100°C (-4°F to 212°F)

Physical Characteristics:
• Cable Length: 0.3 m
• Color: Black
• Enclosure Type: Plastic
• Product Height: 13 mm
• Product Length: 420 mm
• Product Weight: 30 g
• Product Width: 35 mm

OS Compatibility:
• Windows XP, Vista, 7, 8
• Windows Server 2003, 2008 R2, 2012

System and Cable Requirements:
• One available USB 1.1 (or above) port

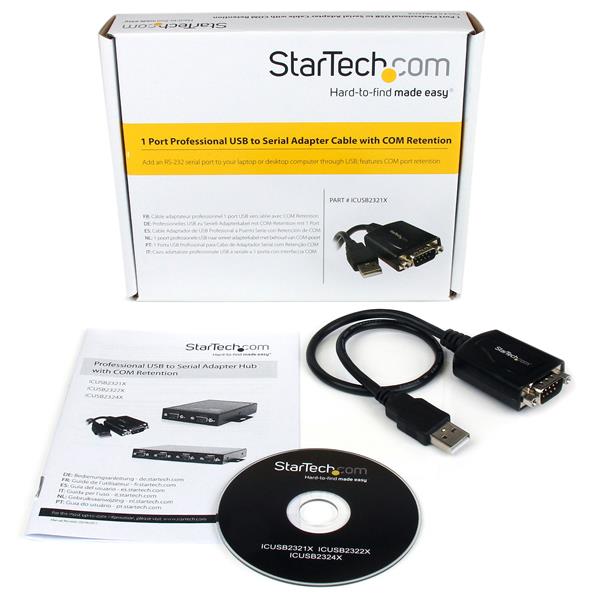

• 1x USB to Serial Adapter
• 1x Driver CD
• 1x Instruction Manual
