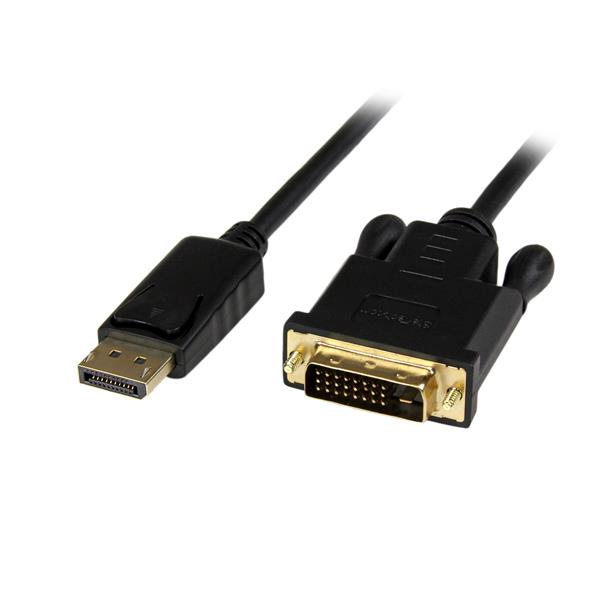

StarTech 1.8m DisplayPort Male to DVI-D Male Active Adapter Cable - Black

The DP2DVIMM6BS 6ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a DVI monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector. For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM6BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI Eyefinity cards. Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.

• Active DisplayPort to DVI conversion
• 1x Male DisplayPort connector, 1x Male DVI connector
• Supports resolutions up to 1920 x 1200
• Plug-and-play Installation

Hardware:
• Active or Passive Adapter: Active
• Adapter Style: Cable Adapter
• Audio: No
• Chipset ID: PS171A
• Converter Type: Cable Adapters

Performance:
• Maximum Cable Length: 6 ft [1.8 m]
• Maximum Digital Resolutions: 1920 x 1200
• Supported Resolutions: 1024 x 768, 1280 x 720, 1920 x 1080, 1920 x 1200
• Wide Screen Supported: Yes

Connector(s):
• Input: 1 - DisplayPort (20 pin) Latching Male
• Output: 1 - DVI-D (25 pin) Male

Environmental:
• Humidity: 40%-85%RH
• Operating Temperature: 0 C to 60 C
• Storage Temperature: -10 C to 70 C

Physical Specifications:
• Cable Length: 6.1 ft [1.9 m]
• Color: Black
• Dimensions (HxLxW): 15 x 1850 x 40 mm
• Weight: 113 g

System and Cable Requirements
• Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.
• This adapter is not compatible for use with the Apple Cinema Display.

• 1x Active DisplayPort to DVI Adapter
