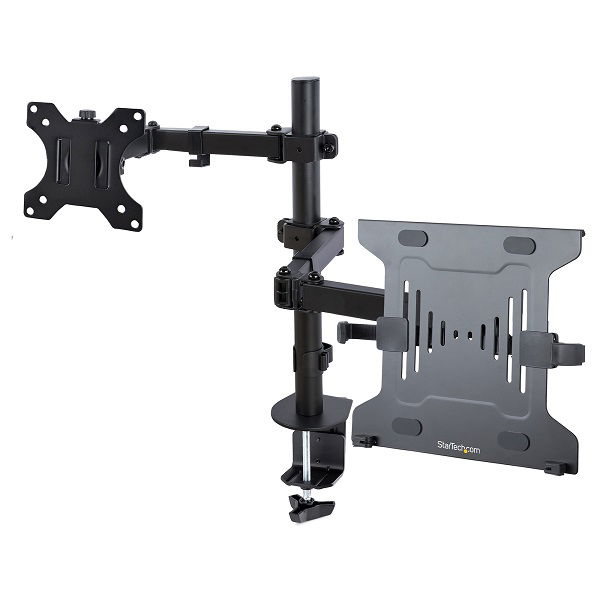

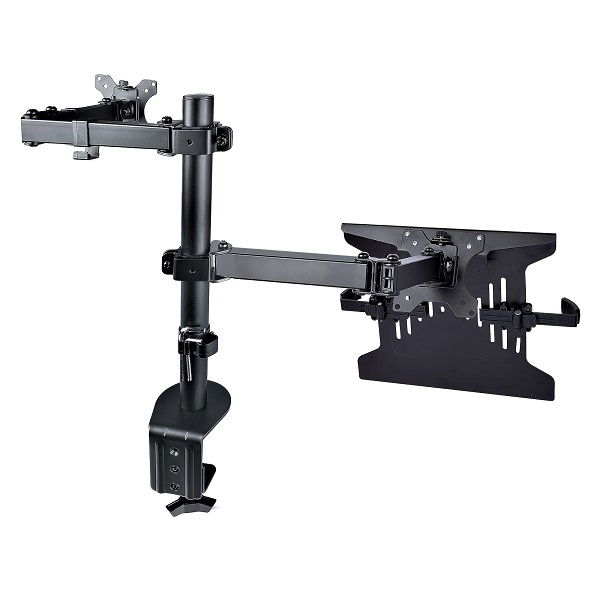

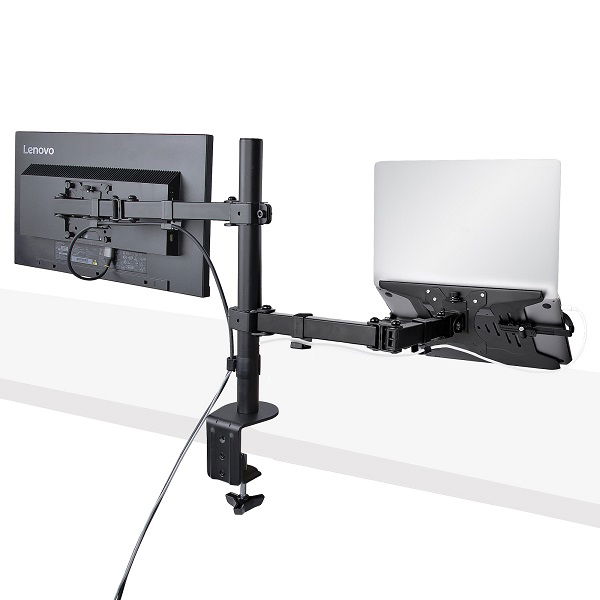

StarTech Monitor Arm with VESA Laptop Tray

Increase your desk space and add versatility and ergonomics to your work/home setup with this VESA-compatible laptop and monitor desk mount. The laptop tray (11.8x11in / 300x280mm) is large enough to hold a laptop between 9.4-16.5in (240-420mm) wide, 1in (25.4mm) thick, and up to 10lbs (4.5kg). The monitor arm allows you to mount a VESA compatible (75x75mm or 100x100mm) display up to 32in with a maximum weight of 17.6lbs (8kg).

Versatile compatibility and solid construction:
This well-ventilated laptop tray includes rubber pads to prevent scuffs and scratches. In addition, the tray features two independent adjustable padded arms that serve as a cradle to secure the laptop and can be independently positioned and secured along the sides of the tray to prevent blocking any port configuration on a laptop. The tray and monitor mount are both solid steel.

Wide range of motion:
The VESA mounts offer wide adjustability options such as tilt +/-45° swivel +/-90°, and rotation 360°. The height can be adjusted along the 17.4in / 443mm pole and the arms can also extend out a maximum of 15.7in / 399mm out. Two joints (at the pole and middle of the arms) allow them to swivel +/-180°.

Ergonomic design:
The multiple adjustment options allow the laptop to be positioned at eye level improving your posture and comfort, and when positioning the monitor mount beside it, enhances your screen real estate and productivity.

Mounting options:
Using the interchangeable desk clamp (C-clamp) you can easily attach and secure the mount to a desk or grommet hole by hand (grommet hole 0.39-2.36in / 10-60mm and desks 0.39-3.46in / 10-88mm thick). You can remove the laptop tray or monitor with no tools for hassle-free changes in your setup. To keep everything neatly arranged, cable management clips around the support arms keep the cables organized and out of the way.

Hardware:
• Wall mountable: No
• Cable Management: Yes
• Articulating: Yes
• # of Displays Supported: 1
• Mounting Options: Desk & Grommet Clamp
• VESA Hole Pattern(s): 75x75 mm, 100x100 mm
• Mounting Surface Thickness: Desk Clamp: Table Thickness 0.39 - 3.46 in. (10 - 88 mm), Grommet Clamp: Table Thickness 0.39 - 3.46 in. (10 - 88 mm), Grommet Mount Hole Size: 0.39 - 2.36 in. (10 - 60 mm)

Performance:
• Weight Capacity (Per Display): 282.4 oz [8000 g]
• Minimum Display Size: 13"
• Maximum Display Size: 34"
• Height Adjustment: Yes
• Maximum Height: 17.4 in [443 mm]
• Maximum Arm Extension: 15.7 in [399 mm]
• Laptop Arm Extension: 15.7 in [399 mm]
• Display Tilt: + 45° / - 45°
• Laptop Tray Tilt: + 45° / - 45°
• Display Swivel: +90° / - 90°
• Swivel / Pivot: 180°
• Display Rotation: 360°

Physical Characteristics:
• Color: Black
• Product Height: 21.6 in [54.8 cm]
• Product Length: 11.0 in [28.0 cm]
• Weight of Product: 13.5 lb [6.1 kg]
• Product Width: 34.5 in [87.6 cm]
• Material: Steel and Plastic
• Laptop Tray Width: 11.8 in [300 mm]
• Laptop Tray Height: 11.0 in [280 mm]

• 2 - VESA mounts
• 2 - Swivel arms
• 1 - Laptop tray
• 2 - Laptop tray arms
• 1 - Desk clamp
• 1 - Pole
• 1 - Pole cap
• 1 - Cable management clip
• 1 - Grommet base plate
• 1 - Grommet clamp plate
• 4 - Laptop tray mounting screws
• 2 - VESA mount knobs
• 5 - Rubber pads
• 3 - Pole mounting screws
• 1 - 4mm hex key
• 1 - 6mm hex key
• 8 - M4x12 screws
• 8 - M4x16 screws
• 8 - M5x12 screws
• 8 - M5x16 screws
• 8 - Washers
• 8 - Spacers
