TP-Link Archer AX90 AX6600 Tri-Band Wi-Fi 6 Router

The new generation of phones—such as iPhone 11, Galaxy Note 10, and Galaxy S10—and laptops already support WiFi 6, with many more on the way. Your router should, too. WiFi 6 holds great promise to future-proof your home network for the next several years. Now is the best time to embrace this new technology.

Powerful and Exquisite:

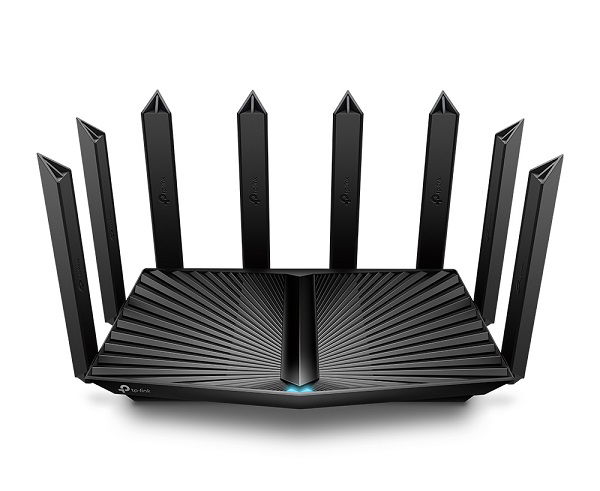

Combining Tri-band WiFi with high-tech WiFi 6, Archer AX90 provides eight simultaneous data streams to open up more bandwidth and help your devices operate at full speed. Eight high gain antennas not only deliver boosted WiFi signals to every corner of your home, but also bring a sense of aesthetics.

Go Faster— Wired or Wireless:
In addition to stunning wireless speeds of more than 6.6 Gbps, AX90 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.

Your Security is Our Priority:
Customize your home network with enhanced security using TP-Link HomeShield's kit of built-in features. Whether you're identifying network security holes, limiting the time your children spend online, or blocking websites, HomeShield gives you the tools you need to fully manage your network.

WPA3—Stronger Security for Your Network:
Building on the widespread adoption of WPA2, the latest WPA3 brings new capabilities to improve cybersecurity.

TP-Link OneMesh: Flexibly Create Whole Home WiFi with Archer AX90:
OneMesh is a simple way to form a Mesh network with a single WiFi name for seamless wholehome coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.

Wireless:
• Standards: Wi-Fi 5: IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
• WiFi Speeds: AX6600: 5 GHz: 4804 Mbps (802.11ax, HE160), 5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range: 4 Bedroom Houses: 8× Fixed High-Performance Antennas (External and Internal), Multiple antennas form a signal-boosting array to cover more directions and large areas. ; Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range. ; High-Power FEM: Improves transmission power to strengthen signal coverage ; 4T4R: Multiple streams in the same band strengthen the fault tolerance in transmission
• WiFi Capacity: Very High Tri-Band: Allocate devices to different bands for optimal performance ; 4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients ; OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients ; Airtime Fairness: Improves network efficiency by limiting excessive occupation ; DFS: Access an extra band to reduce congestion ; 8 Streams: Connect your devices to more bandwidth
• Working Modes: Router Mode, Access Point Mode

Hardware:
• Processor: 1.5 GHz Quad-Core CPU

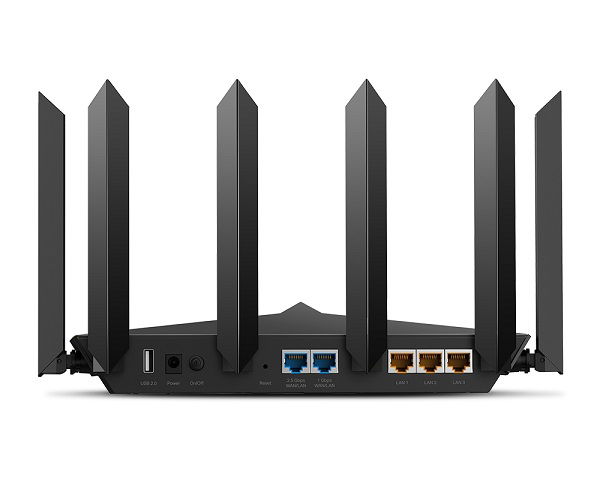

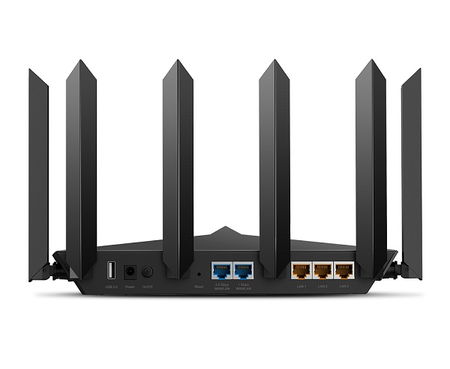

• Ethernet Ports: 1x 2.5 Gbps WAN/LAN Port, 1x 1 Gbps WAN/LAN Port, 3x 1 Gbps LAN Ports
• USB Support: 1x USB 3.0 Port, 1x USB 2.0 Port
• Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button
• Power: 12 V

Security:
• WiFi Encryption: WPA, WPA2, WWPA3, WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway ; HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
• Guest Network: 1× 5 GHz-1 Guest Network, 1× 5 GHz-2 Guest Network, 1× 2.4 GHz Guest Network
• VPN Server: OpenVPN, PPTP

Software:
• Protocols: IPv4, IPv6
• Service Kits: HomeCare
• OneMesh: OneMesh Supported. Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
• Parental Controls: HomeShield Parental Controls: Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Quality of Service: QoS by Device
• Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
• NAT Forwarding: Virtual Servers, Port Forwarding, Port Triggering, DMZ, UPnP
• IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
• DHCP: Address Reservation, DHCP Client List, Server
• DDNS: TP-Link, NO-IP, DynDNS
• Management: Tether App, Webpage

Physical:
• Dimensions (W×D×H): 311 x 207 x 174 mm

Environment:
• Environment Operating Temperature: 0°C ~40°C
• Storage Temperature: -40°C ~70°C
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
