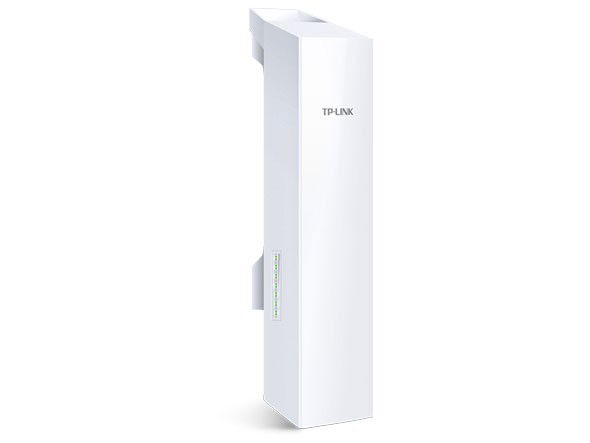

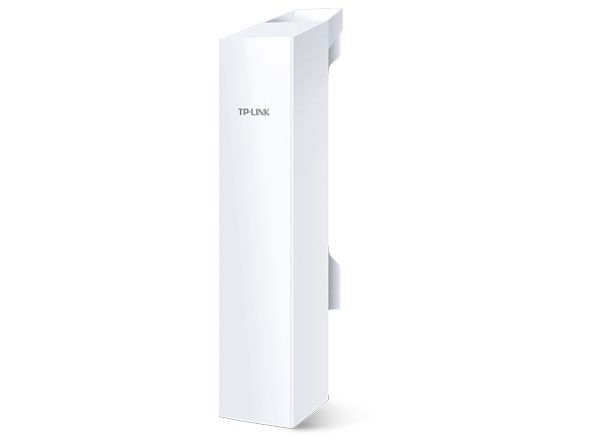

TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor Access Point - Opened Box

TP-LINK’s 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

• Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
• Adjustable transmission power from 0 to 30dBm/1000mw
• System-level optimizations for more than 13km long range wireless transmission
• TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
• Centralized Management System – Pharos Control
• AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
• Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

• Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface:
• 1x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
• 1x 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
• 1x Grounding Terminal
• 1x Reset Button
• Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
• Voltage range: 16-27VDC
• Dimensions (W X D X H): 11×3.1×2.1 inch (276×79×60 mm)
• Power Consumption: 10.8 Watts Max
• Antenna Type: Built-in 12dBi 2x2 Dual-polarized Directional Antenna
• Beam Width: 60° (H-Plane) / 30° (E-Plane)
• Protection: 15KV ESD Protection, 6KV Lightning Protection
• Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification
• Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
• Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
• Wireless Speeds: Up to 300Mbps (40MHz,Dynamic), Up to 144.4Mbps (20MHz,Dynamic), Up to 72.2Mbps (10MHz,Dynamic), Up to 36.1Mbps (5MHz,Dynamic)
• Frequency: 2.4~2.483GHz
• Transmission Power: 30dBm/1000mw (Adjustable power by 1dBm)

1 x TP-LINK CPE220 2.4GHz 300Mbps 12dBi Outdoor Access Point (Brand new unit which has had seal/sticker removed from outer packaging)
