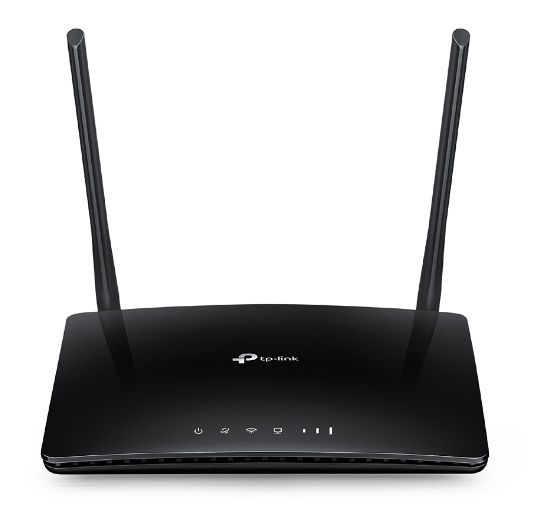

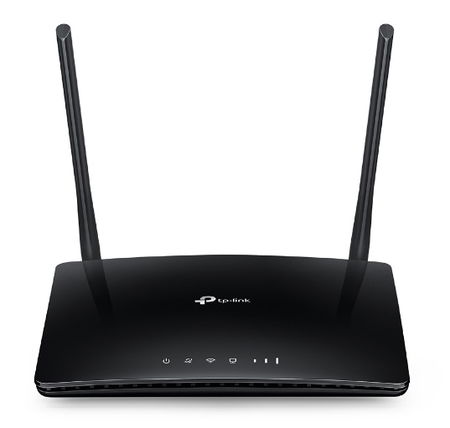

TP-Link TL-MR6400 300Mbps Wireless N 4G LTE Router (APAC Version)

Share Your 4G LTE Network. Take full of advantage of your cutting-edge 4G LTE network, which can achieve download speeds of up to 150 Mbps. The TL-MR6400 shares your 4G LTE network with multiple Wi-Fi devices, so you can enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. It is also fully compatible with FDD-LTE and TDD-LTE, which are supported by most operators around the world.

No Configuration Needed Simply Plug and Play!:
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a SIM card and turn on the TL-MR6400. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Wi-Fi Where You Need It:
The TL-MR6400 offers unmatched convenience and versatility. Whether you’re at home or working in a remote location, the TL-MR6400 is the perfect solution. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition centre to the RV, the TL-MR6400 always has you covered.

Internet Access for up to 32 Devices simultaneously:
The TL-MR6400 can easily share a 3G/4G connection with up to 32 wireless devices, such as tablets, laptops and mobile phones at the same time. The LAN ports are also ready to provide internet for wired devices like desktop computers.

Easy Management:
Set up the TL-MR6400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

Hardware:

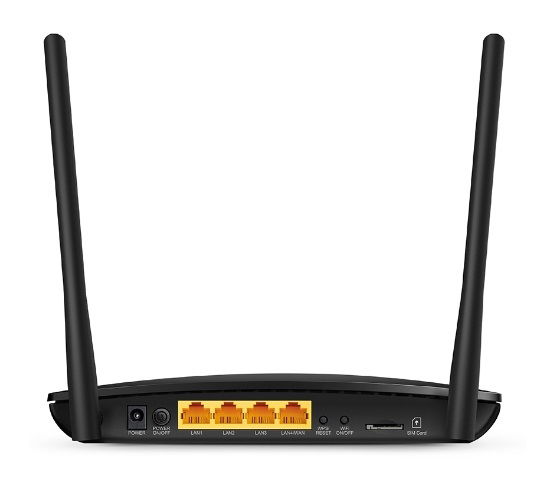

• Interface: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
• Button: WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
• External Power Supply(EU): 9V/0.85A
• External Power Supply(APAC): 12V/1A
• Dimensions ( W x D x H ): 202 x 145 x 34 mm
• Antenna Type: V3/APAC: 2 Internal 4G LTE Antennas, V2/V1: 2 Detachable 4G LTE Antennas
• Compatibility: NBN - Fibre to the Premises (FTTP) - Wireless Router Mode. ; NBN - Fibre to the Home (FTTH) - Wireless Router Mode.

Wireless:
• Wireless Standards: IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4GHz
• Signal Rate: 300Mbps at 2.4GHz
• Reception Sensitivity: 11g 54M: -74dBm, 11n HT20: -71dBm, 11n HT40: -67dBm
• Transmit Power: CE: < 20dBm (2.4GHz)
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• WAN Failover: Yes
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
• Network Type (V3): 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz), 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
• Network Type(APAC V3): 4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700MHz), TDD-LTE B38/B39/B40/B41 (2600/1900/2300/2500MHz), 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900MHz)z)

Software:
• Operating Modes: 3G/4G Router, Wireless Router
• Management: Access Control, Local Management, Remote Management, reboot schedule
• WAN Connection Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• DHCP: Server, Client, DHCP Client List, Address Reservation
• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS: DynDns, NO-IP
• VPN: PPTP VPN, IPSec VPN , OpenVPN
• Access Control: Parental Control, Local Management Control
• Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
• Protocols: Supports IPv4 and IPv6
• Guest Network: 2.4GHz guest network x 1

Environment:
• Operating Temperature: 0°C ~40°C
• Storage Temperature: -40°C ~70°C
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing

• Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1,
• MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0,
• Safari 4.0 browsers or higher, or other Java-enabled browsers
• SIM Card
