Product Description:

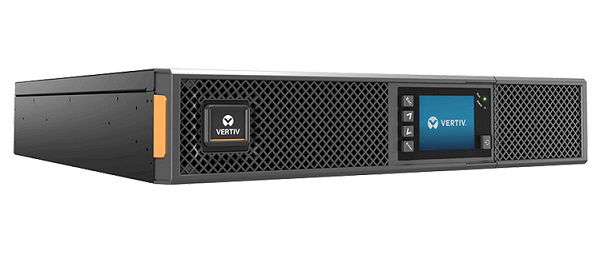

Vertiv Liebert GXT5-1000IRT 1000VA 1000W 8 Outlet Online Double Conversion Rack/Tower
The Vertiv Liebert GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system.
Features:
Unity Power Factor:
More active power available so more loads can be connected versus lower power factor systems thus saving space and cost.
High Efficiency Up To 94% in On-Line Mode:
Higher efficiency means optimized energy management and lower heat dissipation, thus providing energy and cost savings
Colored Graphic LCD Display With Gravity Orientation:
User friendly interface to know UPS status and configuration.
Rack / Tower Design With Short Depth And Flexible To Install:
A more compact UPS that will use less floor space, and leaves more space available for data equipment in a rack
Battery Cabinets With Auto-Detection:
Be confident your UPS is set upcorrectly to report available run time when used with external battery cabinets.
Intelligent Battery Management:
New algorithm to estimate Battery health status and replacement date prediction
More active power available so more loads can be connected versus lower power factor systems thus saving space and cost.
High Efficiency Up To 94% in On-Line Mode:
Higher efficiency means optimized energy management and lower heat dissipation, thus providing energy and cost savings
Colored Graphic LCD Display With Gravity Orientation:
User friendly interface to know UPS status and configuration.
Rack / Tower Design With Short Depth And Flexible To Install:
A more compact UPS that will use less floor space, and leaves more space available for data equipment in a rack
Battery Cabinets With Auto-Detection:
Be confident your UPS is set upcorrectly to report available run time when used with external battery cabinets.
Intelligent Battery Management:
New algorithm to estimate Battery health status and replacement date prediction
Specifications:
Input:
• Rated Volatge: 230 VAC
• Rated Frequency: 50 Hz / 60 Hz
• Frequency Range: 40 to 70 Hz
• Power Factor: ≥0.99
• Input Power Cord: C14
Output:
• Nominal Voltage: 200/208/220/230/240 VAC
• Waveform: Sine wave
• Inverter Overload Capability: >200% minimum 250 ms, 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 second
• Efficiency in Online Mode: Up to 93%
• Active Eco Mode: Up to 98%
• Output Receptacles: (8) EN60320/C13
Internal Battery:
• Rated Voltage: 36Vdc
• Charger Current: Nominal 2.2 A; Maximum 8A
• • Type: Valve-regulated, non-spillable, lead acid
• Quantity x V x Rating: 3 x 12V x 9.0Ah
• End Cell Voltage: 1.67 V/cell
• Floating Voltage: Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell
• Battery Voltage Range: 30 Vdc to 42.3 Vdc
General:
• Operating Temperature, °C: Full power up to 40 ºC (up to 50 ºC with derating)
• Storage Temperature, °C: - 15 to + 40
• Relative Humidity : 0 to 95% non-condensing
• Operating Elevation: Up to 3,000 m at 25°C without derating
• RFI/EMI: CISPR22 Class A (RFI)/ FCC Part 15 (Class A)
• Transportation: ISTA Procedure 1A
• Surge Immunity: ANSI C62.41 Category B
• Dimensions: 400 x 430 x 85 mm
• Weight: 16.5kg
• Rated Volatge: 230 VAC
• Rated Frequency: 50 Hz / 60 Hz
• Frequency Range: 40 to 70 Hz
• Power Factor: ≥0.99
• Input Power Cord: C14
Output:
• Nominal Voltage: 200/208/220/230/240 VAC
• Waveform: Sine wave
• Inverter Overload Capability: >200% minimum 250 ms, 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 second
• Efficiency in Online Mode: Up to 93%
• Active Eco Mode: Up to 98%
• Output Receptacles: (8) EN60320/C13
Internal Battery:
• Rated Voltage: 36Vdc
• Charger Current: Nominal 2.2 A; Maximum 8A
• • Type: Valve-regulated, non-spillable, lead acid
• Quantity x V x Rating: 3 x 12V x 9.0Ah
• End Cell Voltage: 1.67 V/cell
• Floating Voltage: Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell
• Battery Voltage Range: 30 Vdc to 42.3 Vdc
General:
• Operating Temperature, °C: Full power up to 40 ºC (up to 50 ºC with derating)
• Storage Temperature, °C: - 15 to + 40
• Relative Humidity : 0 to 95% non-condensing
• Operating Elevation: Up to 3,000 m at 25°C without derating
• RFI/EMI: CISPR22 Class A (RFI)/ FCC Part 15 (Class A)
• Transportation: ISTA Procedure 1A
• Surge Immunity: ANSI C62.41 Category B
• Dimensions: 400 x 430 x 85 mm
• Weight: 16.5kg
We sell a large range of UPS devices including commercial grade models requiring a licensed electrician, and/or additional cables/power requirements for installation. Warranty periods on UPS devices will exclude the battery, as they are a consumable item. We will be processing and shipping orders during the holiday period, however our services may be impacted due to the closure of some of our supplier warehouses. Full operations will resume on Monday 6th January. For the fastest response to your queries please email us at sales@elive.co.nz
Additional Details:
-
Stock Availability: Out of Stock!
-
Warranty: Supported by Manufacturer
-
Manufacturer: Vertiv Shop
-
Product Found In: UPS Devices
-
Model Number: GXT5-1000IRT2UXL
-
Part Number: DV16165
